A08

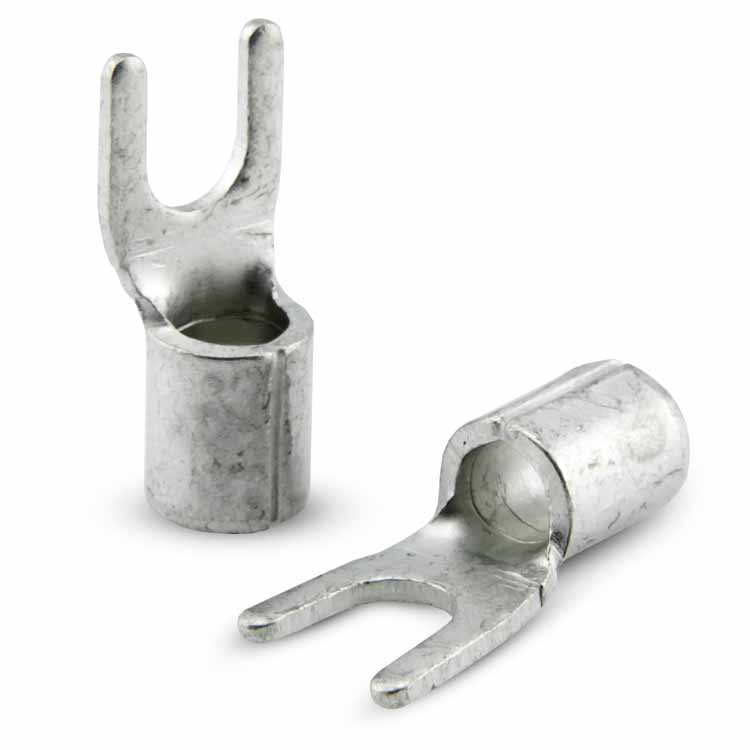

Fork Terminal Uninsulated
A08

Description

TriCab Uninsulated Fork Terminals are designed for our flexible cables. A thin wall copper sleeve secures our fine stranded conductor, and ensures a consistent, reliable crimping termination.

Advantages

  • Laser cut barrel ensures a consistent, smooth edge - faster and easier assembly.
  • Insulation always retains integrity during crimping - no loose wires.

Material

  • Barrel - High Conductivity Annealed copper (99.9% purity). Electrolytic tin-plated

Operating Temperature

  • -40°C to 130°C
  • -40°F to 266°F

Standards

  • AS/NZS 61210, AS/NZS 4437, IEC 61210, IEC 60352-2, IEC 60512

Inspection and Testing

  • Visual Inspection
  • Physical measurement
  • Conductor fit
  • Mechanical pulling test to AS/NZS 4437 and IEC 60512
A08 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
