J97
TECHNO Junction Boxes
J97

Description

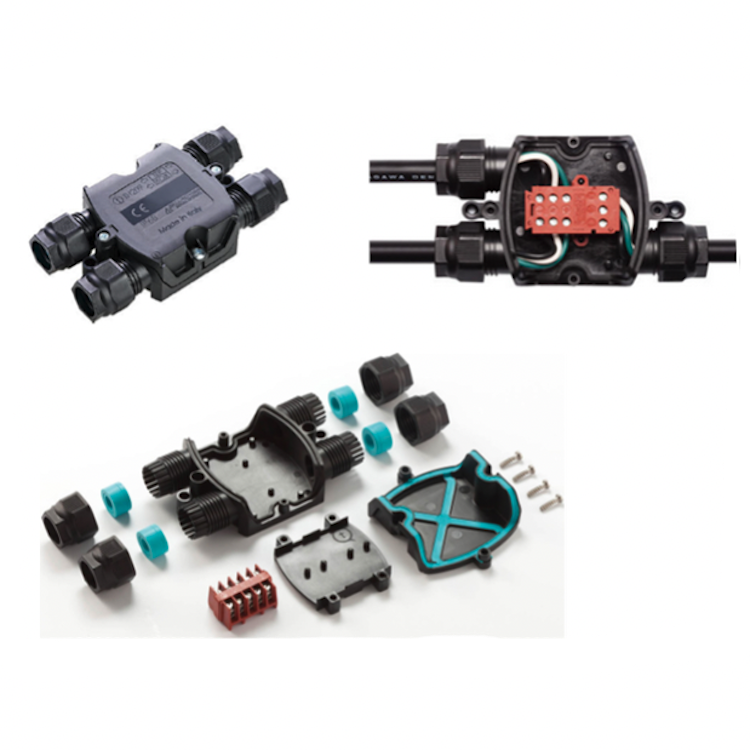

TECHNO junction boxes are protected and compact for maximum versatility with an IP68 guaranteeing water and dustproof connections without the use of a resin or gel.

The boxes are re-accessible thanks to their compact dimensions, they are particularly suitable for connections in small spaces or containing electronic and electromechanical components.

IN STOCK NOW

Advantages

  • IP68 Water and Dust Proof.
  • Compact Design for use in smaller spaces.
  • Halogen Free material
  • Flame Retardant (V2)

Materials

  • Body: PA66
  • Contacts: Brass – Nickel Plated

Operating Temperature

  • -40°C to +125
  • -49°C to +257

Standards

  • EN 60529
  • EN 60998

Inspection and Testing

  • Visual Inspection
  • Physical measurement
  • IP68 Test in accordance with EN 60529

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
