J07

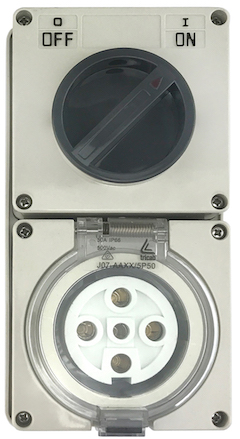

Switched Outlet Socket Round Pin
J07

Description

TriCab switched outlet sockets are designed and tested to AS/NZS 3123. They are IP66 rated, impact resistant and UV stabilized, making them suitable for most indoor and outdoor applications.

Current rating range of 20 to 50 Amps.

Typical applications include:

  • Commercial / Industrial
  • Manufacturing
  • Temporary power

Advantages

  • IP66 rating provides protection from dust and water
  • Resistant to UV and most common chemicals
  • High impact resistance
  • Hinged cover with rubber seal to maintain IP66 rating

Materials

  • Enclosure: Nylon PA66
  • Transparent cover: Polycarbonate PC
  • Terminals: Brass

Operating Temperature

  • -25°C to 75°C
  • -13°F to 167°F

Standards

  • AS/NZS 3123
  • AS/NZS 60529, IEC 60529

Inspection & Testing

  • Visual inspection
  • Physical measurement
  • IP66 type test to AS/NZS 60529 and IEC 60529
  • Electrical type test to AS/NZS 3123:2005
Installation guide
J07 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
