J01

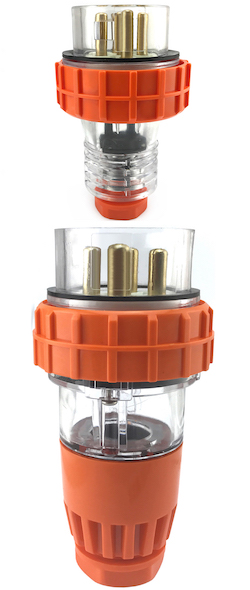

Straight Plug Round Pin
J01

Description

TriCab plugs are designed and tested to AS/NZS 3123. They are IP66 rated, impact resistant and UV stabilized, making them suitable for most indoor and outdoor applications.

Current ratings from 20 to 50 Amps.

Typical applications include:

  • Commercial / Industrial
  • Manufacturing
  • Temporary power
  • Mobile machinery and equipment

Advantages

  • IP66 rating provides protection from dust and water
  • Resistant to UV and most common chemicals
  • High impact resistance
  • Locking ring with rubber seal, maintains IP66 rating
  • Transparent body allows visual wiring check
  • Internal cable clamp provides strong grip and prevents cable twist

Materials

  • Locking ring, locking nut: Nylon PA66
  • Transparent body: Polycarbonate PC
  • Terminals: Brass

Operating Temperature

  • -25°C to 75°C
  • -13°F to 167°F

Standards

  • AS/NZS 3123
  • AS/NZS 60529, IEC 60529

Inspection & Testing

  • Visual inspection
  • Physical measurement
  • Cable fitting test
  • IP66 type test to AS/NZS 60529 and IEC 60529
  • Electrical type test to AS/NZS 3123:2005
Installation guide



J01 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
