D03

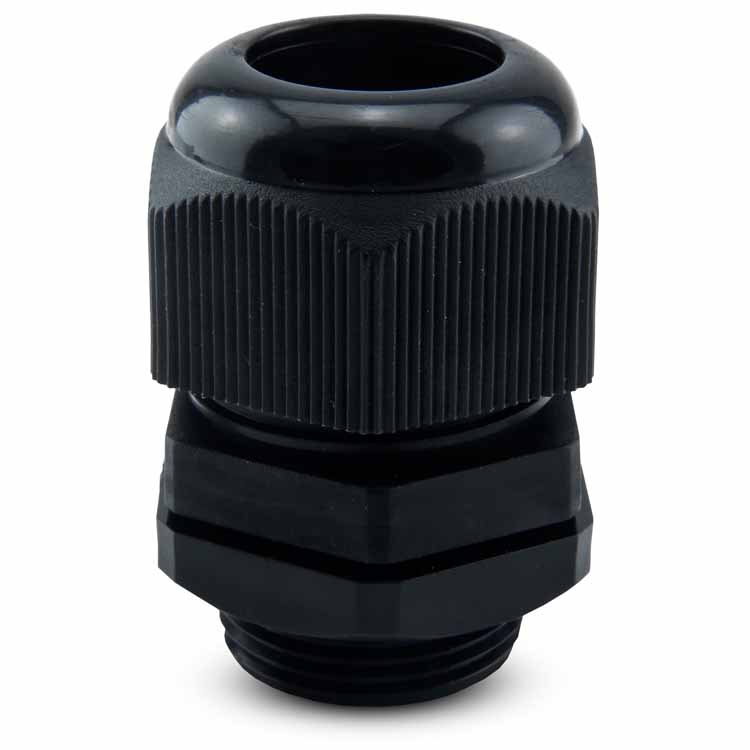

Standard Long Thread Cable Gland
D03

Description

TriCab Long Thread Glands are precision engineered from Nylon 66, and suitable for all electrical installations.

Typical applications include:

  • Switchboards/Distribution Panels
  • Electrical Machinery/Control Panels
  • Weather Proof Enclosures

Advantages

  • High strength construction - protection against stretching, vibration, twisting and shaking.
  • Provides IP68 protection against dust, liquid, salt, weak acid, alcohol, grease and general solvents.
  • Proven reliability in harsh environmental conditions.
  • 15 bar Maximum strain relief through clamping range. Trapezoid thread with high torque guarantee.
  • Extended long thread enables installation in motor housing and thick enclosure housings.
  • No disassembly required for installation.
  • Supplied with lock nut and seal.

Materials

  • Nylon PA66 body and claw
  • Nitrile Butadiene Rubber (NBR) seal and O-ring

Operating Temperature

  • -40°C to 110°C
  • -40°F to 230°F

Standards

  • AS/NZS 60529, IEC 60529, EN 60529

Inspection and Testing

  • Visual Inspection
  • Physical measurement
  • Cable fitting test
  • Thermal heat aging test
  • UV resistant type test
  • IP68 type test to AS/NZS 60529 and IEC 60529
D03 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
