J54

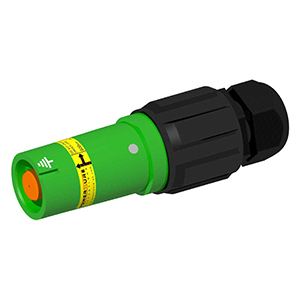

PowerSure Line Source Connector
J54

Description

TRICAB’s PowerSure line source connectors are high quality and safe power lock type of plugs used for high current electrical power connections.

The connector is fitted with a male contact in a female housing and is usually attached to the source of power.

It is a free connector that easily terminates using standard crimp tools or set-screw contacts.

Typical applications include:

  • Energy Plants
  • Generator/Transformer connections
  • Power Distribution Panels
  • Outdoor Events

For cable sizes 25-95mm², please use a J51 Reducing Kit with the 500 amp connector.

 J54 Dimensions

Advantages

  • Mechanically keyed to prevent connection errors.
  • Secondary locking system prevents unintentional disconnection.
  • Finger proof nose to prevent touching of live contact.
  • Provides IP67 protection against moisture and dust when mated.
  • Flame retardant to UL94.
  • Colour coded to prevent incorrect phase connection.
  • Fully compatible with Powersafe and Powerlock type connectors.

Operating Temperature

  • -35°C to 125°C
  • -31°F to 257°F

Inspection & Testing

  • Visual inspection
  • Physical measurement
  • Conductor fit
Installation Guide (500A)
Installation Guide (800A)
Coupling Guide

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
