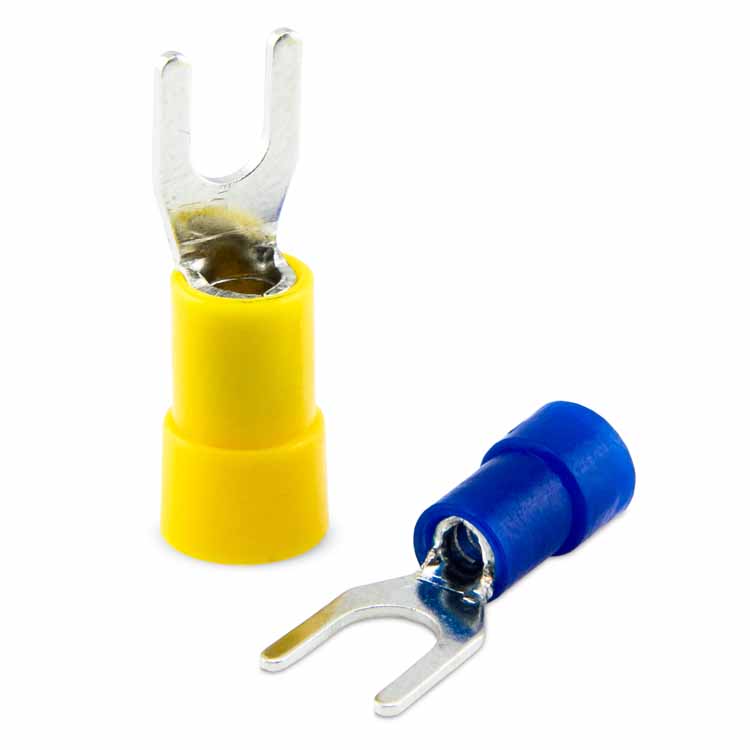

Fork Terminal TPE Insulated
A07

Description

TriCab Insulated Fork Terminals are designed for our flexible cables. A thin wall copper sleeve secures our fine stranded conductor, and ensures a consistent, reliable crimping termination.

Colour indicates size range
Red: 0.5 to 1.5mm2
Blue: 1.5 to 2.5mm2
Yellow: 4 to 6mm2

Advantages

  • Injection moulded directly onto a seamless copper barrel - significantly more robust and reliable than cold pressed.
  • Laser cut barrel ensures a consistent, smooth edge - faster and easier assembly.
  • Insulation always retains integrity during crimping - no loose wires.
  • A moulded taper guides the fine stranded conductor - makes installation efficient and reliable.
  • Low Smoke Zero Halogen - highest level of environmental safety and Greenstar compliance.
  • Presents a unified LSZH solution, when matched with TriCab flexible switchboard/panel wires.

Materials

  • Insulation - TPE
  • Barrel - High Conductivity Annealed copper (99.9% purity). Electrolytic tin-plated

Operating Temperature

  • -40°C to 130°C
  • -40°F to 266°F

Voltage Rating

  • 600V

Standards

  • AS/NZS 61210, AS/NZS 4437, IEC 61210, IEC 60352-2, IEC 60512

Inspection and Testing

  • Visual Inspection
  • Physical measurement
  • Conductor and cable fit
  • Thermal heat ageing test of insulation
  • Current loading test to AS/NZS4437 and IEC60512
  • Voltage proof to AS/NZS 4437 and IEC 60512
  • Mechanical pulling test to AS/NZS 4437 and IEC 60512
  • Insulating grip effectiveness to AS/NZS 4437 and IEC 60512
A07 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
