B27

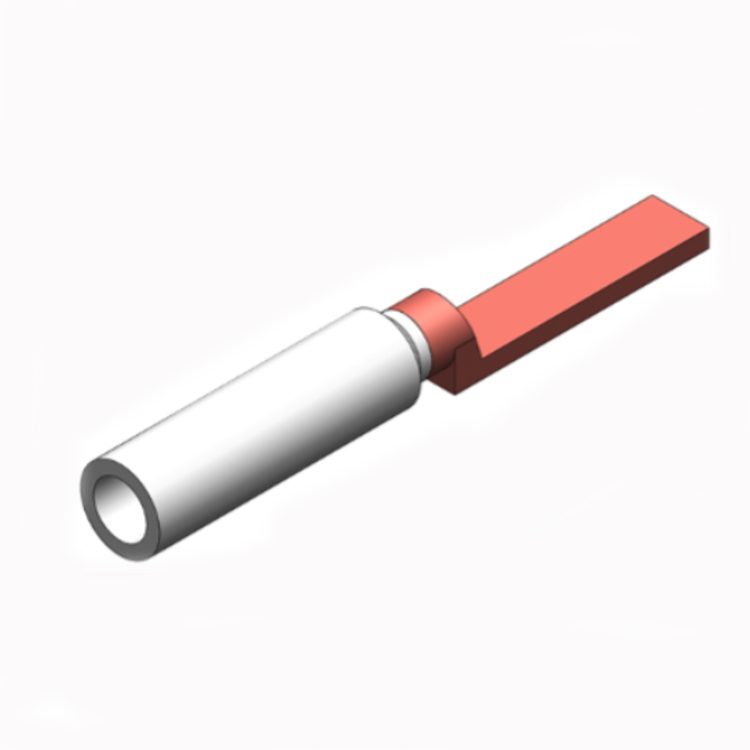

Long Palm Bi-Metallic Lug
B27

Description

TriCab Long Palm Bi-Metallic lugs are specifically designed to directly terminate our flexible Aluminium cables without the need for copper tails.

This saves enormous installation costs and time. They are manufactured using a friction welding process, which provides optimal transition between the Aluminium barrel and Copper palm.

The long palm lugs are not pre-drilled which allows for flexibility in the hole placement for connection at terminals.

IN STOCK NOW

Advantages

  • Cost Saving.
  • Narrow palm eliminates the need for Copper Tails.
  • Clear markings of conductor and crimp die sizes on the barrel.
  • Designed to accommodate a range of options for hole placement along the palm.

Materials

  • 99.6% Pure Aluminium
  • 99.95% Pure Copper
  • Copper Alloy Temper M to AS 1567
  • Aluminium Alloy 1350 Temper to AS2848.1

Operating Temperature

  • -40°C to 110°C
  • -40°F to 230°F

Standards

  • AS/NZS 4325.1, IEC 61238-1

Inspection and Testing

  • Visual Inspection
  • Physical measurement
  • Weight measurement
  • Conductor fit
  • Mechanical pulling test to AS/NZS 4325.1 and IEC 61238-1
Installation Guide



Datasheet
B27 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
