PSKH2A
KENNARDS HIRE POWER CABLE PLUG-SOCKET (10-15A) LEAD
 |
DescriptionTricab Pre-Assembled Copper Flexible, Multi-Core, power cable leads are suitable for heavy-duty mobile and flexible connections to equipment such as pumps, generators, Switchboards, and Submains. They can also be used in industrial machines, power generation equipment, manufacturing plants, and other similar applications. The Plugs and Sockets used to assemble the leads are impact-resistant, UV stabilized, and suitable for most indoor and outdoor applications. |
Advantages
- Heavy duty cable with splash resistance to oil, petrol, acid, and sea water
- UV Resistant
- Excellent Abrasion Resistance
- Excellent Flexibility
- IP66 rated Plugs and Sockets
- High Impact resistance
Inspection & Testing
- Visual inspection
- Physical measurement
- Weight measurement
- Electrical Testing to AS/NZS 3760:2010
- Electrical type test to AS/NZS 3123:2005
| Item | Specification |
|---|---|

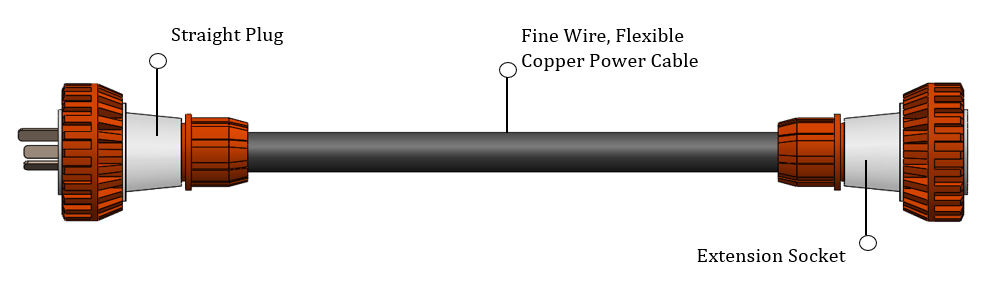

| Connector | Straight Plug & Extension Socket (Flat Pin) Material: Polycarbonate PC, Terminals: Brass |
| Cable | Fine Wire, Plain Copper Conductor Heavy-duty Rubber, Multi Core Power Cable. Colour: Black (Other colours available on request) |
| Printing on Cable | To Customer Specification |
| Voltage | 0.6/1 kV |
| Length (L) | 25m, 30m, 50m, 75m, 100m (Custom Lengths are available) |
| Operating Temperature | -15 to +110˚C |
** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
©
