Z35

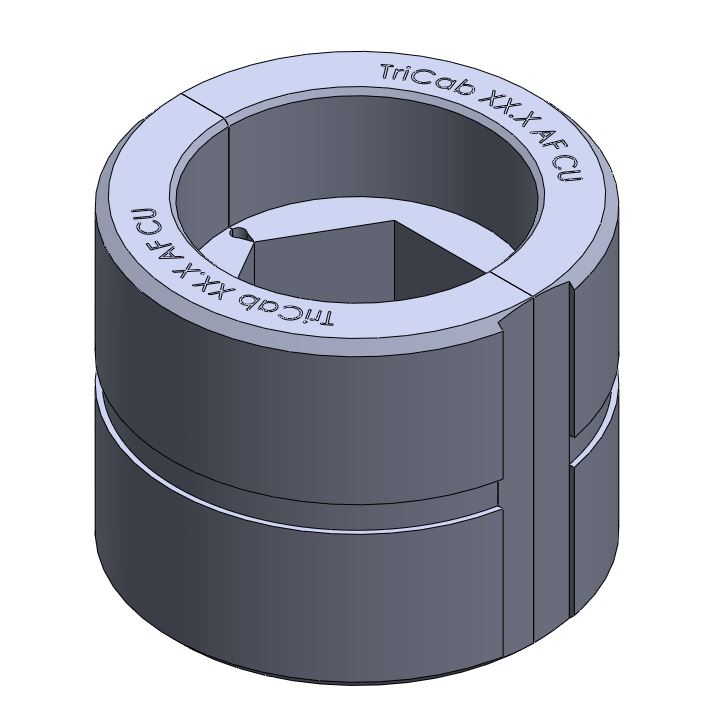

Copper 60 Tonne Crimping Dies
|
DescriptionTriCab Crimping Dies are suitable for 60 Tonne compression crimping tools. The die kit contains 4 sets of dies that cover 300mm² to 630mm² size Copper Conductors. |
Advantages
- Packed in durable plastic storage box
- Clear markings of die A/F
- Stamps die size on lug
Material
- Heat-treated Carbon Steel
Inspection & Testing
- Visual inspection
- Physical measurement
- Crimping test
Datasheet
| COPPER CRIMPING DIE SELECTION | ||
|---|---|---|
| Copper Conductor Size mm2 |
Die A/F mm |
Length of Crimp Face mm |
| 300 | 26.0 | 25 |
| 400 | 28.1 | 25 |
| 500 | 31.0 | 25 |
| 630 | 37.0 | 25 |
** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
©
