J32

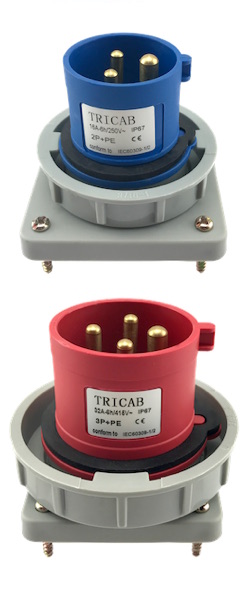

Ceeform Inlet
J32

Description

TriCab Ceeform inlets are designed and tested to IEC 60309. They are IP67 rated, impact resistant and UV stabilized, making them suitable for most indoor and outdoor applications.

Current ratings from 16 to 125 Amps.

Typical applications include:

  • Commercial / Industrial
  • Manufacturing
  • Temporary power
  • Mobile machinery and equipment

Advantages

  • IP67 rating provides protection from dust and water
  • Resistant to UV and most common chemicals
  • High impact resistance

Material

  • Body: Polycarbonate PC
  • Terminals: Brass
  • Seal ring: Rubber

Operating Temperature

  • -30°C to 110°C
  • -22°F to 230°F

Standards

  • IEC 60309-1/2
  • AS/NZS 60529, IEC 60529

Inspection & Testing

  • Visual inspection
  • Physical measurement
  • Cable fitting test
  • IP67 type test to AS/NZS 60529 and IEC 60529
  • Electrical type test to IEC 60309
Installation Guide
DataSheet



J32 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
