G03
Dual Wall Glue-lined Heat Shrink
G03

Description

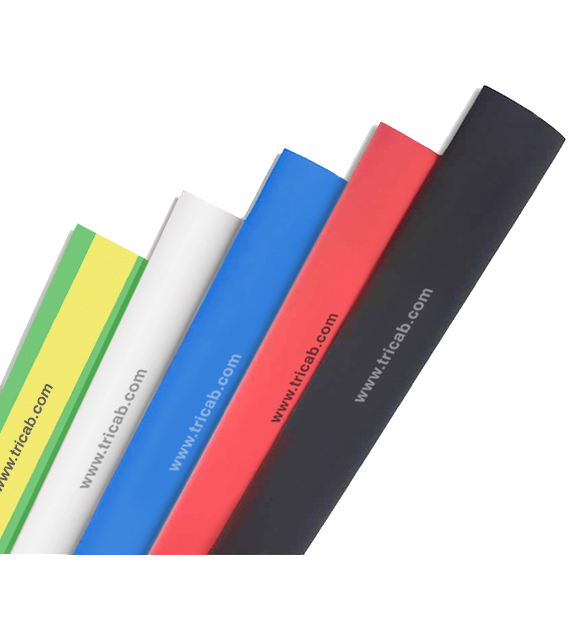

TriCab Medium Wall Heat Shrink is suitable for a variety of low voltage electrical and mechanical applications. It exhibits excellent electrical and mechanical properties, and suits indoor or outdoor installations.

Available in red, black, white, blue and earth colours.

Advantages

  • High resistance to impact and abrasion
  • Thermoplastic adhesive liner for complete environment protection and insulation
  • ROHS compliant
  • Flame retardant
  • High shrink ratio 3:1
  • UV Stabilized

Material

  • Cross-linked Polyolefin with inner coating of hot melt adhesive

Operating Temperature

  • -45°C to 125°C
  • -49°F to 257°F

Voltage Rating

  • 600V

Standards

  • UL224, ASTM D2671

Inspection & Testing

  • Visual Inspection
  • Physical measurement
  • Shrinking temperature test
  • Shrinking ratio test
  • Flame retardant test to UL94
  • Tensile Strength test to AS/NZS 3808 and ASTM D2671
  • Thermal heat aging test to AS/NZS 3808 and ASTM D2671
  • UV resistant type test
G03 Dimensions

** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.

©
