J57

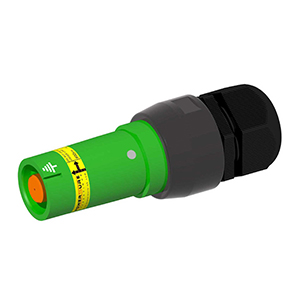

PowerSure XL Line Source Connector
J57

Description

TRICAB’s PowerSure XL line source connectors are designed for use in power distribution applications for cables with outer diameters too large to fit the standard line source connector.

It features a larger M50 gland to facilitate this, compared to the M40 gland in the corresponding standard connector.

Typical applications include:

  • Energy Plants
  • Generator/Transformer connections
  • Power Distribution Panels
  • Outdoor Events

 J57 Dimensions

Advantages

  • Mechanically keyed to prevent connection errors.
  • Secondary locking system prevents unintentional disconnection.
  • Finger proof nose to prevent touching of live contact.
  • Provides IP67 protection against moisture and dust when mated.
  • Flame retardant to UL94.
  • Colour coded to prevent incorrect phase connection.
  • Fully compatible with Powersafe and Powerlock type connectors.

Operating Temperature

  • -35°C to 125°C
  • -31°F to 257°F

Inspection & Testing

  • Visual inspection
  • Physical measurement
  • Conductor fit

There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
